Application:
- Oven, microwave
- Steam oven
- Air fryer
Accessories (customer customized requirements):
. In-line terminal
. Connector
. Tube (fiberglass, heat shrink, teflon)
. Cable ties
Specification parameters:
Sensor series | CWF2 series |
Operating temperature range | -40 ℃ to 300 ℃ |
Type of temperature sensing element | MF51 NTC thermistor series |
Resistance specifications | 1KG4537 (R200 ℃=1K Ω ± 2.5%, B100/200=4537K ± 3%) |
Head packaging form | Metal shell packaging type |
Shell material | SUS304 |
Head Package Size | Reference drawings |
Common wire | UL3122 |
Dielectric Strength | 2000VAC, 3S, 0.5mA (conventional, optional) |
Thermal time constant | ≤ 15s (in a constant temperature oil bath) |
Dissipation coefficient | ≥ 2.5mW/℃ (25 ℃, in still air) |
Rated power | 150mW (25 ℃, in still air) |
Customized services:
The above accessories
Shell size, shape, material
Line type and length
The resistance, B value, and accuracy of NTC thermistors can be customized

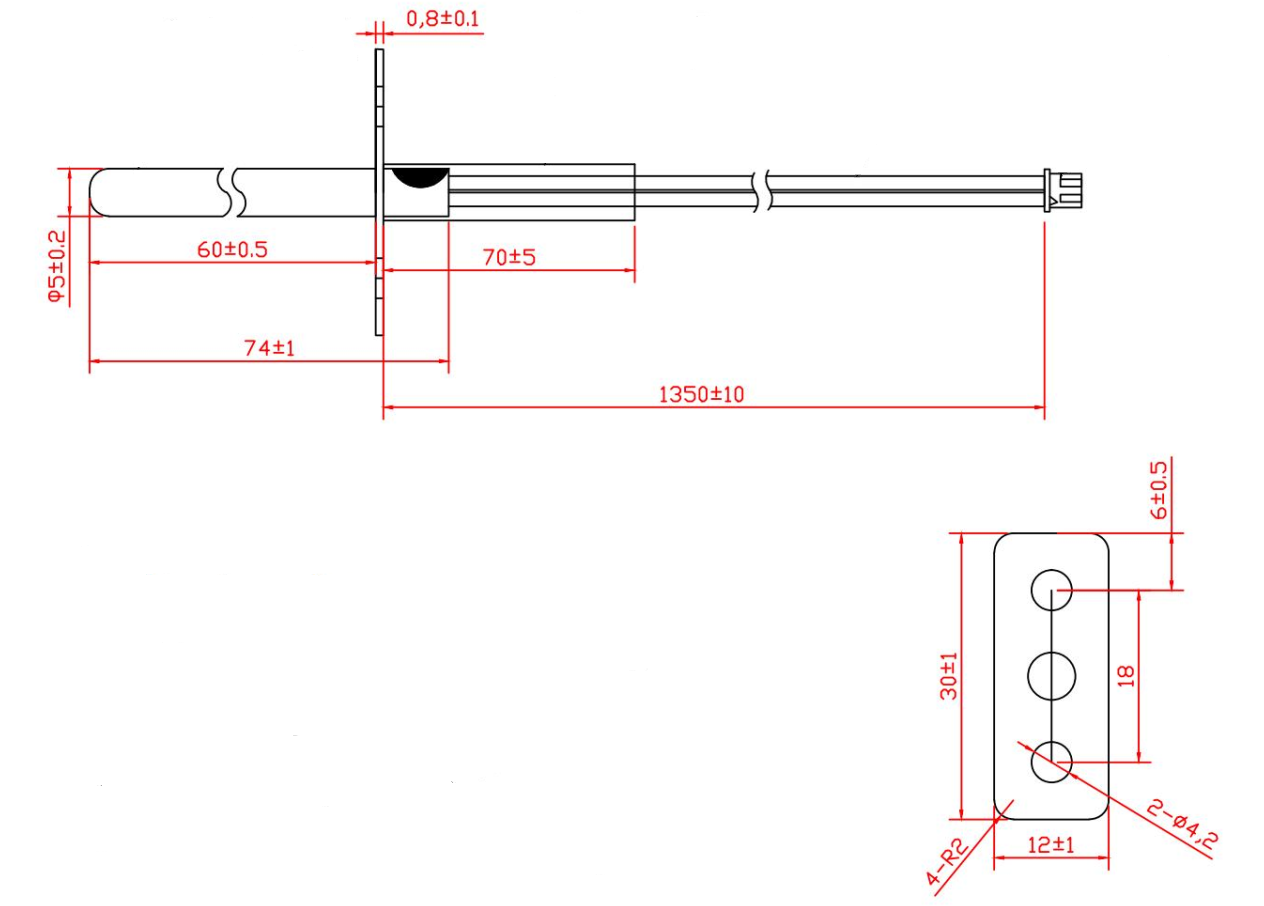

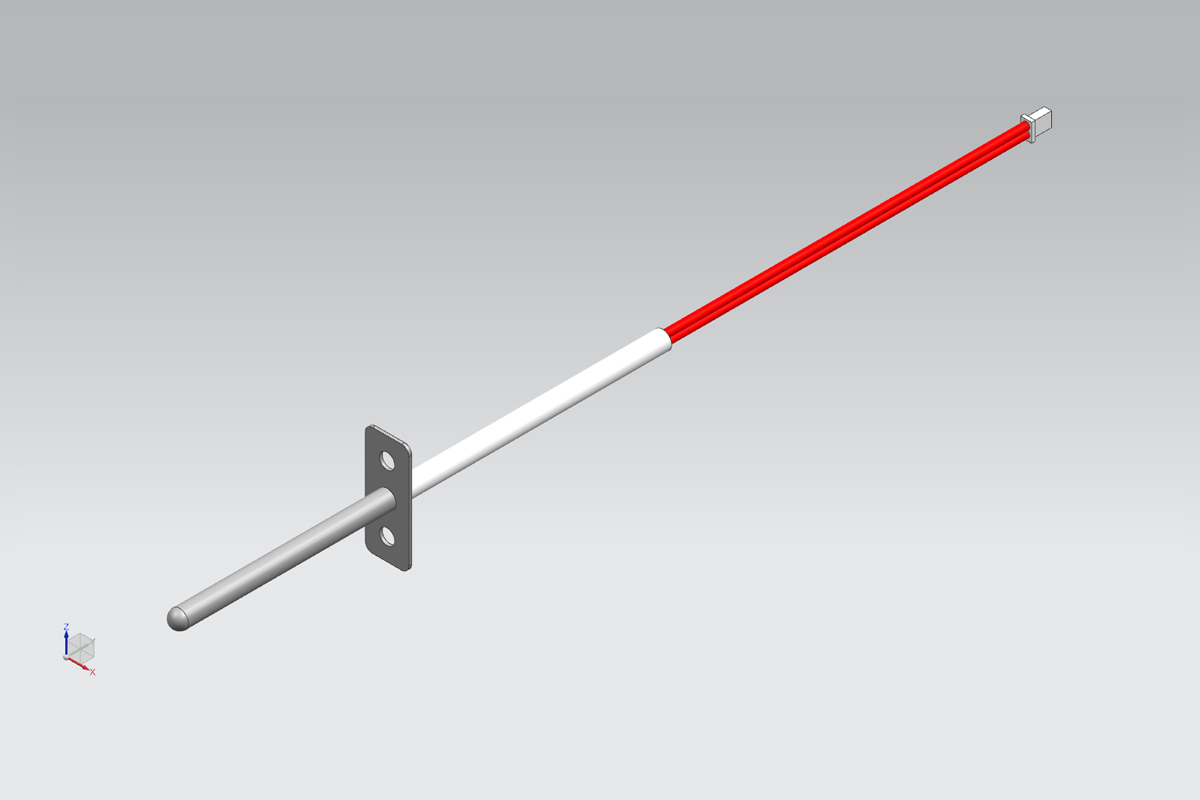

Typical style reference drawings:
