Application
. Oven, microwave oven
. Steaming oven
. Air fryer
Accessories (customized requirements)
. In line terminal
. Connector
. Casing (fiberglass casing, heat shrinkable casing, Teflon casing)
. Tie
Specifications
Sensor family | CWF2 series metal shell encapsulation type |
Operating temperature range | -40 ℃ to 300 ℃ (limited by temperature sensing elements, wire rods, etc.) |
Type of temperature sensing element | NTC thermistor (Ukesa MF51 series), PT100/1000 |
Resistance specification | 50KF3950100KF3950, 1KG4537, PT1000-B, 3.3KG3970, 1.966KH4260500KF4260, 3.3KG3970, 1.27KF3899, etc |
Head packaging form | Metal enclosed type |
Shell material | SUS304, etc |
Head package size | Customized size and shape |
Common wire rod | UL1332, UL3122, UL3656, UL1430, UL10362, mica wire, etc |
Dielectric Strength | 1000VAC, 3S, 0.5mA (conventional, optional) |
Thermal time constant | ≤ 15s (in thermostatic oil bath) |
Dissipation coefficient | ≥ 2.5mW/℃ (25 ℃, in still air) |
Rated power | 150mW (25 ℃, in still air) |
Customized service
. Above accessories
. Shell size, shape and material
. Line type, line length
. The resistance value, B value and precision of NTC thermistor can be customized

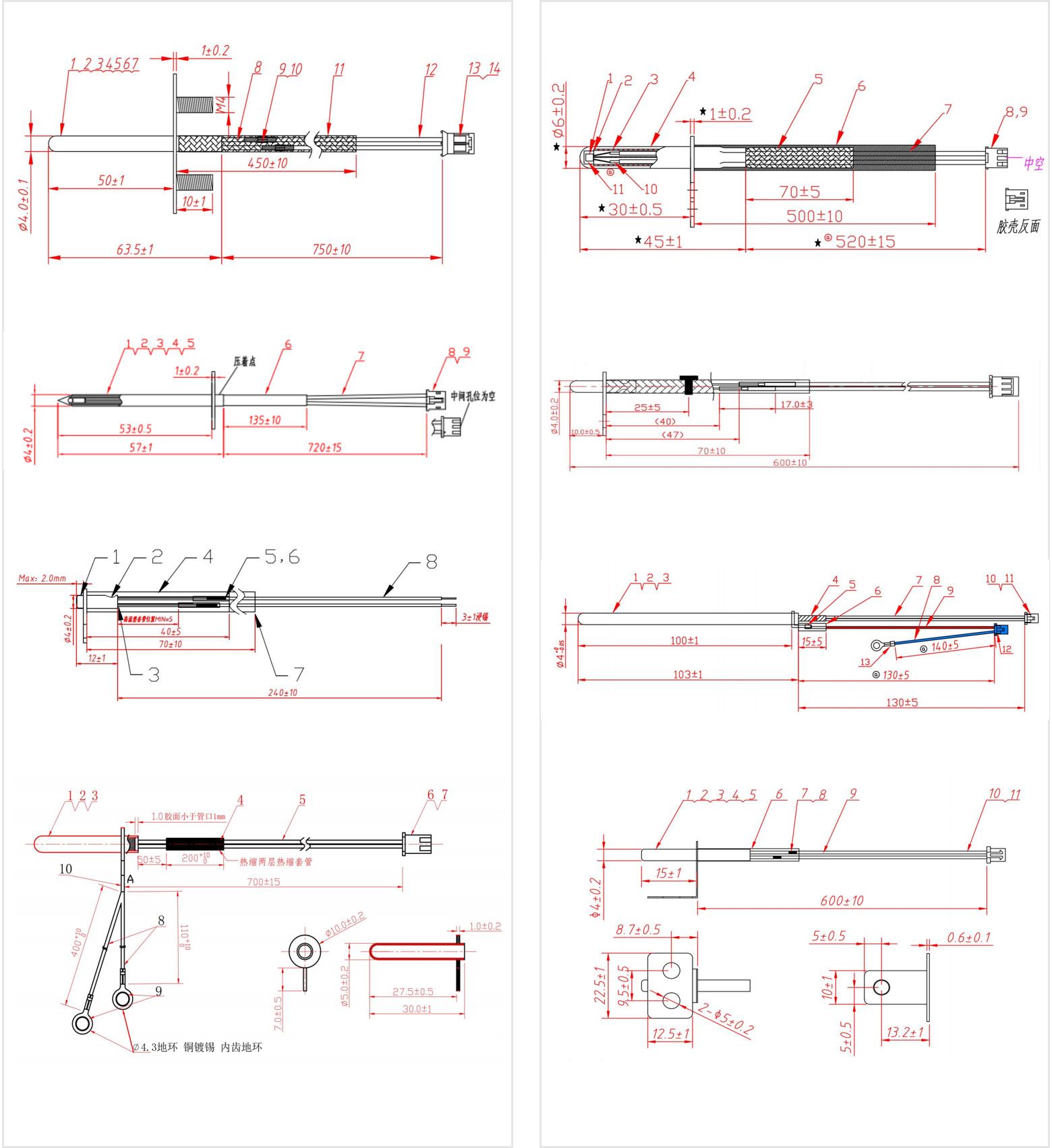

Typical style reference drawing
